Step by Step Installation for
WiperEx Wiper Blades
Steps for B1
Steps for B2
Steps for C
Steps For B1 Adapter
Step 1
B1 Adapter
Step 2
Pinch Tap Button
Step 3
Pinch the two swallow tails of the joint and insert the scraper arm obliquely at the position indicated by arrow. The swallow tail is stuck
Step 4
Backword light pull scrapper arm confirms firm. installation is completed
Steps For B2 Adapter
Step 1
B2 Adapter Width 19mm
Step 2
Grasp two sheets and fold them forward
Step 3
Scraper arm inserted from the rear
Step 4
Backward light pull scraper arm confirms firm, installation is completed
Step 1
B2 Adapter Width 16mm
Step 2
Grasp two sheets and fold them back
Step 3
Scraper arm inserted from the rear
Step 4
Backward light pull scraper arm confirms firm, installation is completed
Steps For C Adapter
Step 1

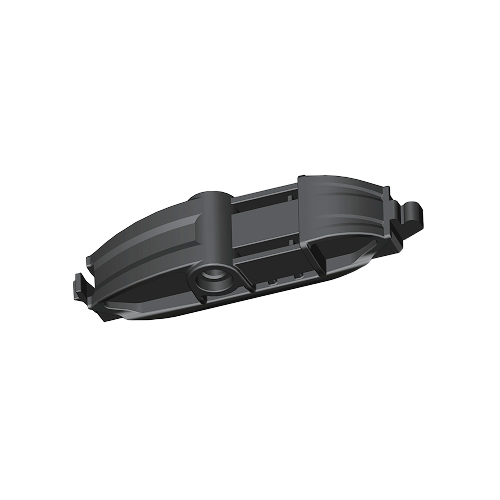

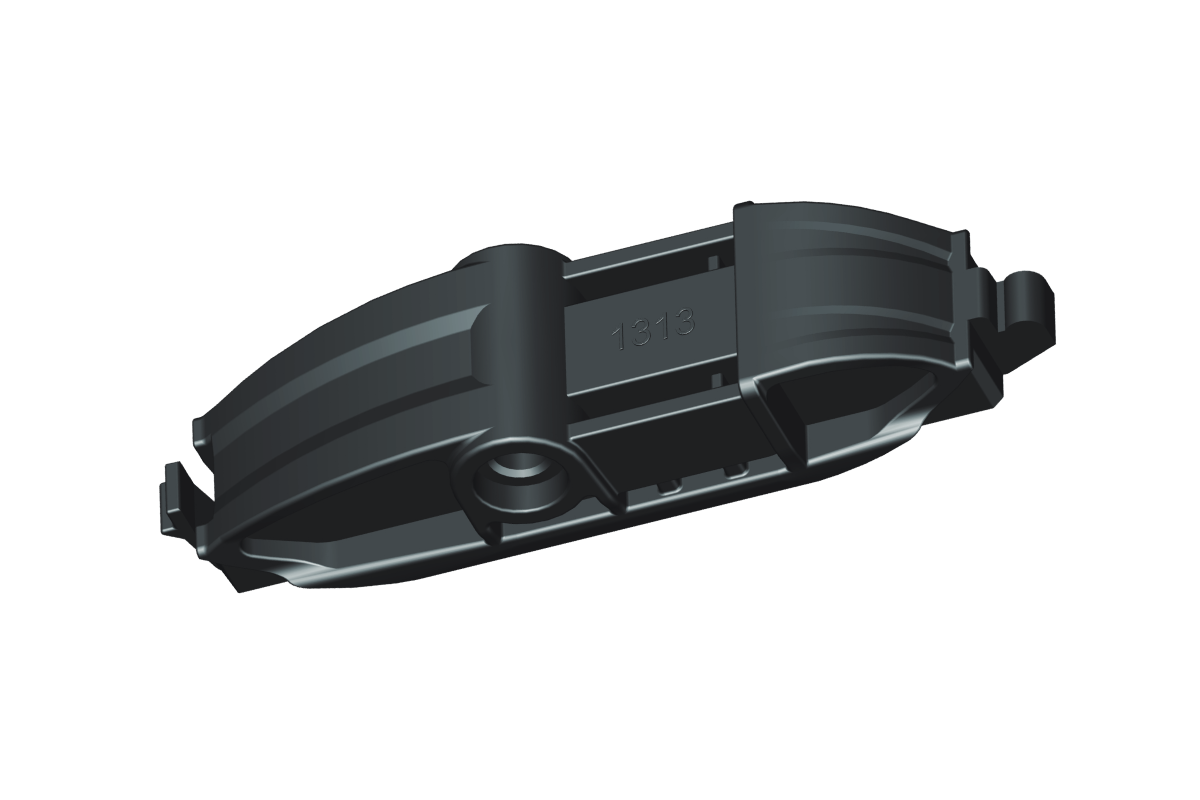

C Adapter
Step 2
Side Pin ¢ 5*22mm ¢5*17mm
Step 3
Scraper arm and wiper insert 90 degrees into hole and rotate again
Step 4
Installation is completed
